HIPAA-Compliant Document AI: Extracting PHI Without Exposure

A hospital wants to turn ten years of scanned patient records into structured data. The technology to do it has never been better. The hesitation is never about whether the AI can read a discharge summary — it can. It is about a narrower, sharper question: when that record passes through a document AI system, where does the protected health information go, and who could see it along the way?

That question is the real substance of building HIPAA compliant document AI, and most discussions answer the wrong version of it. They focus on redaction — removing names and identifiers from the output. But the exposure that matters happens earlier, in the path the document travels before any redaction runs. This guide is for healthcare platform owners and compliance leads deciding how to extract medical records safely. It is not legal advice; HIPAA obligations depend on your specific setup, and your compliance team should make the final call.

1. What HIPAA compliance actually requires of a document AI system

HIPAA protects PHI — the eighteen identifiers, from names and dates to medical record numbers, that tie health information to a person. For a document AI system, the obligation is not a single feature but a chain: every point where PHI is stored, transmitted, or processed has to be controlled, logged, and access-restricted.

The detail that catches teams off guard is that PHI exposure is not limited to the final output. A traditional extraction pipeline reads every character on the page indiscriminately, creating a plaintext copy of the record that lives — however briefly — in memory, in temporary files, in processing logs, and in any intermediate service the document passes through before redaction is ever applied. Each of those resting places is a point a compliance audit will ask about. The question is not only "is the output clean" but "everywhere the document went, was the PHI controlled."

This reframes the compliance problem. It is less about scrubbing the result and more about minimizing the number of places PHI can exist in the first place.

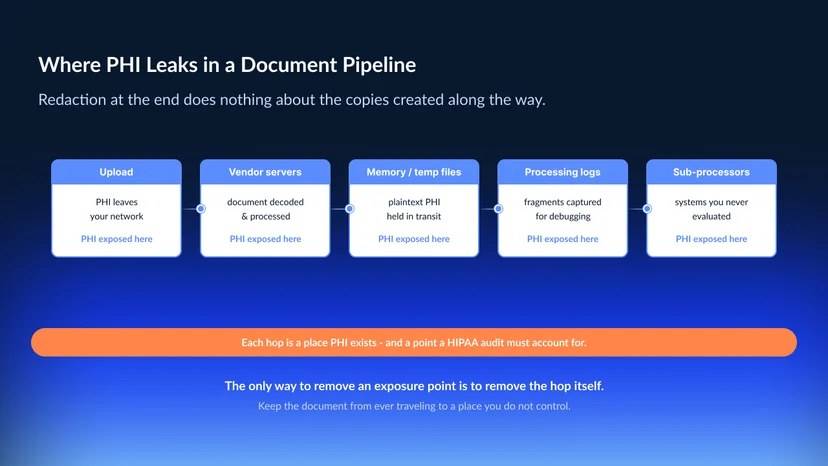

2. Where PHI actually leaks in a document pipeline

Map a typical cloud-based extraction flow and the exposure points become visible. Each hop is a place PHI exists, and each one has to be accounted for.

The transmission to the vendor is the first exposure — PHI now travels outside your network. The vendor's servers are the second, where the document is decoded and processed. Temporary files and memory hold plaintext PHI during processing. Logs may capture fragments of content for debugging. And if the vendor uses sub-processors, the PHI may reach systems you never directly evaluated.

None of these are addressed by output redaction, because they all happen before the output exists. And this is the failure mode behind staged redaction: masking identifiers at one stage does nothing for the copies already created at earlier stages. The only way to remove an exposure point is to remove the hop itself — to keep the document from ever traveling to a place you do not control.

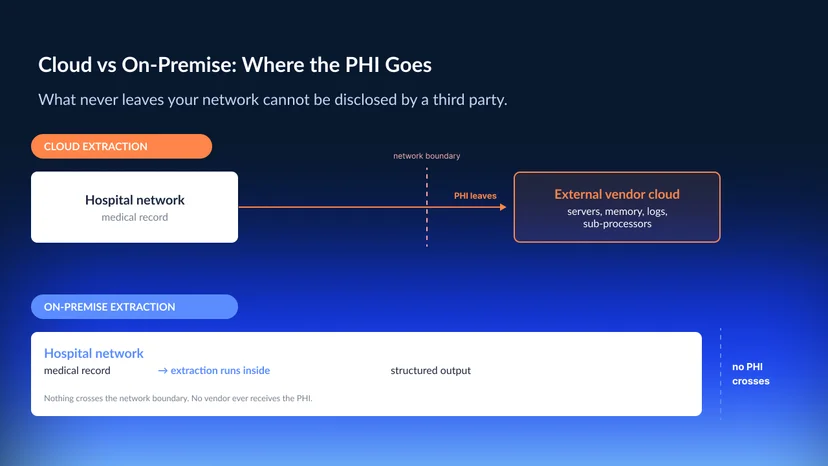

3. Why on-premise extraction changes the compliance question

The most direct way to control where PHI travels is to not send it anywhere. When extraction runs entirely inside your own infrastructure, the document never leaves your network, and most of the exposure points above simply do not exist. This is the same data-control principle that underlies secure document AI more broadly, which we examine in our guide to data sovereignty and on-premise deployment.

This is also where the Business Associate Agreement question changes shape. A BAA is the contract that governs a vendor's handling of your PHI — necessary whenever a third party receives, stores, or transmits it on your behalf. But a BAA grants permission to share PHI; it does not require you to. When extraction runs on-premise and no vendor ever receives the PHI, the relationship a BAA exists to govern may not arise at all. Your compliance team should confirm this for your specific deployment, but the underlying logic is straightforward: a record that stays inside your building has no external custody to document, and no third party in a position to disclose it.

This is the design Korea Deep Learning built DEEP Agent around. It runs fully on-premise, so medical records are extracted inside the hospital's own environment with no transmission to an external service — and because it ties every extracted value to its exact location in the source document, the audit trail of what was read and from where stays inside your infrastructure too. The compliance posture shifts from "trust the vendor's controls" to "the data never left."

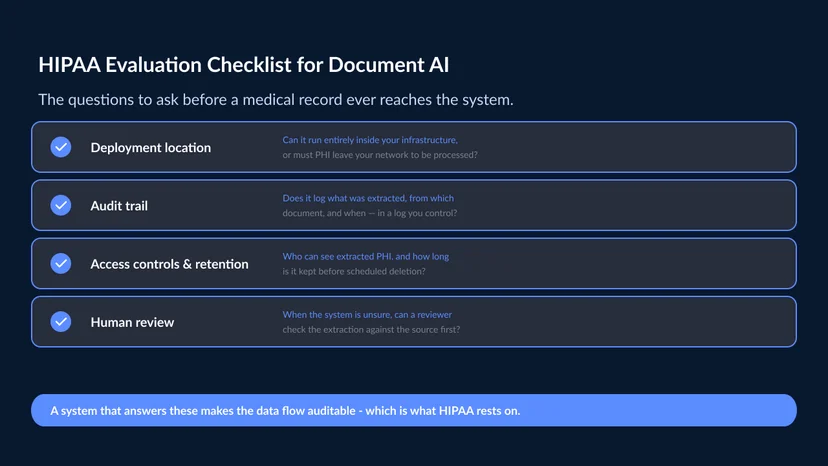

4. Evaluating a document AI system for HIPAA workflows

On-premise capability is the foundation, but a complete evaluation checks several things together. The following is a starting framework, not a legal standard.

Deployment location. Can the system run entirely within your infrastructure, or does PHI have to leave your network to be processed? This single answer reshapes every other compliance question.

Audit trail. Does the system record what was extracted, from which document, and when — in a log you control? Traceability is both a HIPAA expectation and the thing that lets you answer an auditor's questions without guessing.

Access controls and retention. Who can see extracted PHI, and how is access restricted? How long is data retained, and can it be deleted on a defined schedule? Ask specifically whether the system retains your documents or extracted values for any purpose beyond the immediate task — a zero-retention posture, where nothing is kept for model training or logging, removes a whole category of exposure. PHI that lingers without a retention policy is a standing risk.

Human review for uncertain cases. When the system is unsure, can a reviewer check the extraction against the source before it enters a system of record? A wrong value on a medical record is not just an error — it is a patient-safety and compliance issue, so the path for catching it has to exist by design.

A system that answers these well does more than extract accurately. It makes the data flow auditable, which is what HIPAA compliance ultimately rests on. For how healthcare fits alongside other regulated sectors, see our overview of document AI by industry.

5. From compliant extraction to a usable record

Protecting PHI is necessary but not the whole goal. The extracted record also has to be correct and structured, or it creates a different problem — bad data entering clinical and billing systems.

Medical documents are among the hardest to read well: handwritten annotations, dense tables in lab reports, multi-page discharge summaries, faxed forms of poor scan quality. Extraction that preserves structure — keeping a lab result with its reference range, a diagnosis with its date — is what makes the output usable downstream rather than a flat dump of text. And because every value stays tied to its source location, a biller or clinician can verify a figure against the original page in seconds. Compliant handling and usable output are not separate features; they come from the same design — reading the document accurately, inside your environment, with every value traceable to where it came from.

Conclusion

HIPAA compliance for document AI is, at its core, a question about where PHI travels. Output redaction addresses only the final step and ignores the copies a document creates as it moves through a pipeline — in transmission, on vendor servers, in memory, in logs. The most effective way to control those exposure points is to eliminate them, by running extraction on-premise so the record never leaves your network. That single architectural choice reshapes the compliance posture, may remove the third-party custody a BAA exists to govern, and keeps the audit trail in your hands. Paired with structure-preserving, traceable extraction, it turns medical records into usable data without turning PHI into a liability. As always, confirm the specifics with your own compliance team.

Want to see on-premise medical record extraction in your own environment? Bring a representative set — discharge summaries, lab reports, scanned forms — and see how extraction runs without PHI ever leaving your network. Request a demo at koreadeep.com.

Frequently asked questions

What makes a document AI system HIPAA compliant? Not a single feature, but control over every point where PHI is stored, transmitted, or processed — with access restrictions, audit logging, and a defined retention policy. The exposure is not limited to the final output; it includes transmission, server processing, memory, and logs. Minimizing the places PHI can exist matters more than redacting the result.

Does on-premise document AI remove the need for a BAA? A BAA governs a third party that receives, stores, or transmits PHI on your behalf. If extraction runs entirely on-premise and no vendor ever receives the PHI, the relationship a BAA exists to govern may not arise. This depends on your specific deployment, so your compliance team should confirm it — but the principle is that data that never leaves your network has no external custody to document.

Why isn't output redaction enough for HIPAA compliance? Because redaction runs at the end of the pipeline, after the document has already passed through transmission, processing servers, memory, and logs — each of which may hold a plaintext copy of the PHI. Removing identifiers from the final output does nothing about those earlier copies. Controlling the path the document travels matters more than scrubbing the result.

Can document AI handle handwritten and poor-quality medical records? Yes — modern vision-language extraction reads handwritten annotations, dense lab tables, and low-quality scans far better than legacy OCR, while preserving structure so a lab value stays tied to its reference range. Keeping each extracted value linked to its source location also lets a clinician or biller verify it against the original quickly.
