When an enterprise RAG system gives an unreliable answer, the failure rarely starts at the moment the model writes. By then, two upstream decisions have already shaped the result: what evidence was retrieved, and how the source document was converted into retrievable data.
That distinction matters because retrieval-augmented generation has moved from experiment to infrastructure. Enterprise teams now run RAG over contracts, policies, research files, support knowledge bases, financial reports, and the document feeds that power AI agents. The gap between a polished demo and a production system teams can trust usually does not come down to a larger model. It comes down to retrieval quality, document structure, source grounding, and how well the system preserves evidence before the model ever sees it.
This guide maps the architecture. It explains how RAG works, why retrieval became the production bottleneck, how naive, hybrid, graph, and agentic RAG compare, and why document parsing is not a preprocessing detail but a reliability layer. It is written for architects, engineering leaders, AI platform teams, and enterprise buyers building or rebuilding document-heavy RAG systems in 2026.

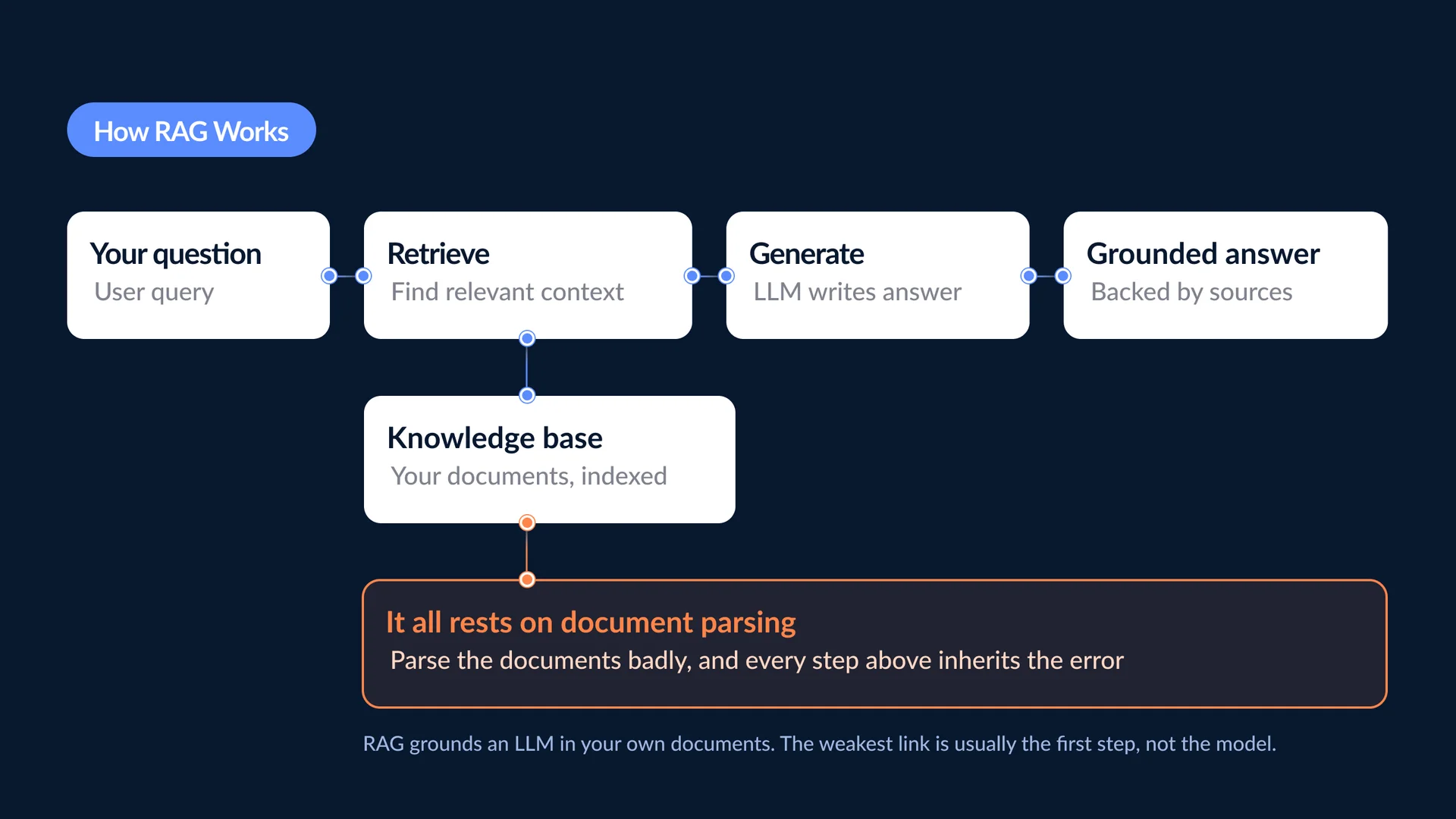

How RAG actually works
The basic idea is simple. Instead of asking a model to answer only from what it learned during training, a RAG system retrieves relevant information from an organization's own data at query time, then passes that material to the model as context — so the answer is grounded in source documents rather than internal memory. The approach was formalized by Lewis et al. in 2020, who showed that combining a language model with a retrieval step over an external knowledge source produced more specific, factual output than a model relying on its parameters alone.
A simple pipeline has four components. A knowledge base stores indexed content from documents, databases, wikis, or tickets. A retriever searches that base and selects the passages, chunks, tables, or records relevant to the question. A language model writes the answer from that evidence. And beneath the visible pipeline, a document parsing layer converts raw files into the structured text, tables, metadata, and references the retriever can index.
That last layer is easy to overlook because it happens before retrieval. But for document-heavy RAG, it often determines what evidence is available in the first place. This is where document AI platforms such as DEEP Agent enter the RAG conversation — not as a vector database, retriever, or generation model, but earlier in the chain, converting complex PDFs, scans, forms, and multi-page documents into structured data that retrieval can index without losing layout, table relationships, or page references. For RAG over clean web pages, parsing is trivial. For RAG over invoices, contracts, underwriting packets, regulatory filings, or handwritten forms, parsing becomes a core architecture decision.
Why retrieval became the 2026 bottleneck
When a RAG answer is wrong, teams often start by changing the prompt or switching the model. That may help at the margin, but in production the more common failure happens one step earlier. The model writes from the evidence it receives; if the retriever supplies incomplete, irrelevant, or poorly structured context, the model still produces a fluent answer — just not a reliable one.

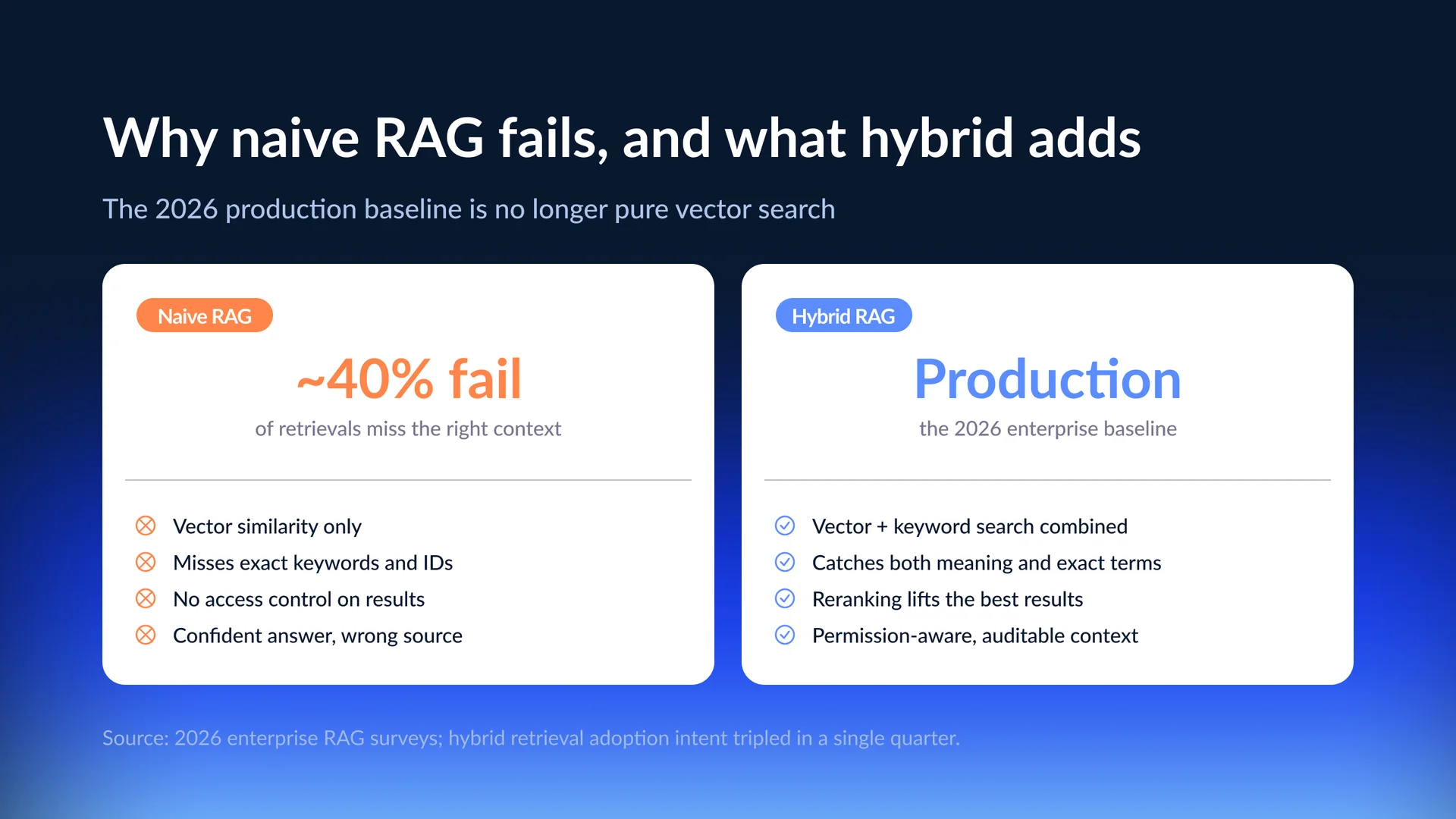

Naive RAG follows a simple pattern: embed the content, store the vectors, retrieve the top matches, ask the model to answer. It works for prototypes with small, clean datasets. It struggles when enterprise data becomes large, messy, permissioned, and full of exact identifiers, and three problems appear fast. A user asks for "termination rights" while the contract says "early cancellation" — semantic search may catch that, but it can miss an exact clause ID, invoice number, or policy code, because vector similarity is built for meaning, not literal strings. A query retrieves ten chunks when two hold the answer, handing the model signal and noise together. And if the parser separated a value from its label or flattened a table, the retriever is already searching distorted evidence.
This is why many teams have moved beyond pure vector search. A 2026 VentureBeat Pulse survey reported enterprise intent to adopt hybrid retrieval rising from 10.3% to 33.3% in a single quarter. The sample was directional, but the signal is clear: production teams are reworking retrieval architecture rather than bolting bigger models on top.
Hybrid retrieval combines dense vector search with sparse keyword search and, usually, a reranking layer. The dense side handles semantic matches — recognizing that "payment delay," "late remittance," and "overdue invoice" are related. Its modern form traces to Karpukhin et al.'s Dense Passage Retrieval (EMNLP 2020), which showed that learned dense embeddings could outperform a strong BM25 keyword baseline on passage retrieval. But that same work is a reminder of why keyword search has not disappeared: the sparse side preserves exact terms — invoice numbers, customer IDs, SKUs, regulatory codes, clause references — that approximate embeddings can miss. The reranker then pushes the most relevant candidates to the top. The reason hybrid is now the safer default is structural: enterprise documents carry two kinds of evidence at once — semantic (a clause, a policy, an explanation) and literal (a number, name, date, or table value) — and a production system usually needs both.

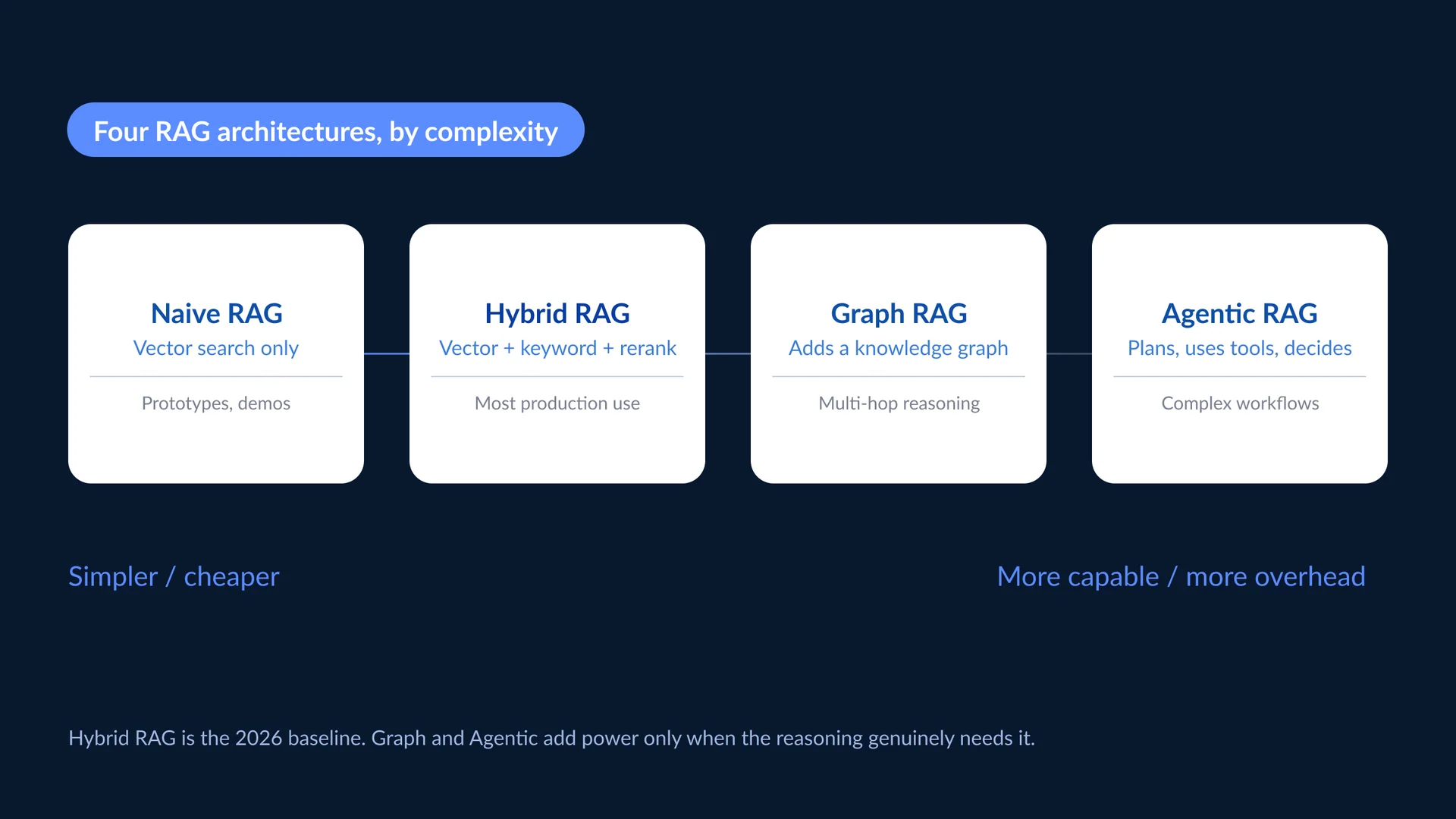

The RAG architecture landscape: four patterns
"Which RAG architecture should we build" is now a genuine enterprise decision. Four patterns matter, sitting on a gradient of capability, complexity, cost, and maintenance.
Naive RAG chunks content, embeds it, retrieves top-k, and sends results to the model. It is fast to build and easy to explain, which makes it useful for proofs of concept and simple knowledge bases. Its weakness is the assumption that semantic similarity is enough — an assumption that breaks whenever questions involve exact identifiers, permissions, version history, or relationships across documents. Treat it as a starting point, not a final architecture.
Hybrid RAG combines semantic retrieval, keyword retrieval, and reranking. For most enterprise teams this is the practical production baseline. It is especially suited to contracts with clause references, financial reports with tables and identifiers, support bases with product codes, compliance documents with policy IDs, and any document set where wording variation and exact strings both matter. It adds complexity over naive RAG, but the gain is usually worth it.
Graph RAG adds a knowledge-graph layer, so the system can reason over relationships — company to subsidiary, contract to counterparty, invoice to purchase order — rather than retrieving isolated chunks. It earns its place when the hardest questions require multi-hop reasoning, such as "which suppliers are linked to contracts expiring this quarter." The graph must be built, maintained, and governed, so it is worth the cost only when relationships are central to the task.
Agentic RAG gives an agent control over retrieval itself: whether to retrieve, how to reformulate a query, which indexes or tools to call, and whether the evidence actually supports an answer before acting. It suits complex workflows spanning multiple systems — a compliance agent retrieving policy, inspecting a contract, comparing clauses against a jurisdiction playbook, then drafting an escalation. This is where RAG meets agentic document processing: retrieval becomes part of the agent's evidence supply chain. And the key caution follows directly — adding an agent on top of weak retrieval or weak parsing does not create reliability; it creates a more complex system with the same evidence problem.
The practical rule is to choose the simplest architecture that answers your hardest real question reliably: naive for prototypes, hybrid as the production default, graph when relationship traversal is central, agentic when the system must plan, verify, and act across steps. A reliable architecture is not the one with the most components — it is the one that retrieves the right evidence consistently and preserves source traceability.
The document layer beneath every architecture
Most RAG architecture diagrams start at the knowledge base. In document-heavy systems, that is already too late. Before a retriever can search anything, source documents must become indexable data — and that step decides what survives: paragraphs, tables, labels, headers, footnotes, page references, section hierarchy, and reading order. Parsing defines the evidence boundary. A retriever can only rank the evidence that survived ingestion, so if a table is flattened, a value detaches from its label, or page references vanish, retrieval quality drops before the retriever even operates.
The research community now measures this directly. Zhang et al.'s "OCR Hinders RAG" (ICCV 2025) introduced OHR-Bench, the first benchmark built to evaluate how OCR and parsing errors cascade into downstream RAG performance, spanning thousands of unstructured PDF pages across seven real-world domains. Its central finding is blunt: across the OCR solutions tested, none was good enough to build a high-quality knowledge base for RAG without introducing noise that degraded retrieval and generation — and the study demonstrates a direct relationship between the degree of parsing noise and the drop in RAG quality. Notably, the same authors point to vision-language models, used without a separate lossy OCR step, as a promising path forward. For this guide, the takeaway is enough: document parsing is not a formatting step; it is the step that decides what evidence enters the retrieval system. We give it a full technical treatment, including how to audit your own pipeline, in the companion guide How Poor Document Parsing Causes RAG Hallucinations.
This is also, precisely, where DEEP Agent fits the RAG stack: not as another framework, but as the document evidence layer that prepares complex documents for retrieval, preserving structure and grounding extracted values to their source locations before any retriever or model begins its work.
A practical path to production
A team building or rebuilding enterprise RAG in 2026 can follow a clear sequence. Start at the document layer: before changing the model or vector database, audit how your pipeline parses table-heavy PDFs, scanned forms, multi-column reports, and contracts with nested clauses, and check whether reading order, labels, table relationships, and page references survive. Then make hybrid retrieval your production default, for the balance of semantic matching and exact-term recall it gives over pure vector search. Next, add graph or agentic layers only when the use case genuinely requires relationship traversal or multi-step reasoning. Finally, instrument the system — retrieval quality, citation accuracy, answer faithfulness, permission compliance — while remembering that evaluation detects failures after they occur, whereas stronger parsing and retrieval reduce the failures entering the system at all.

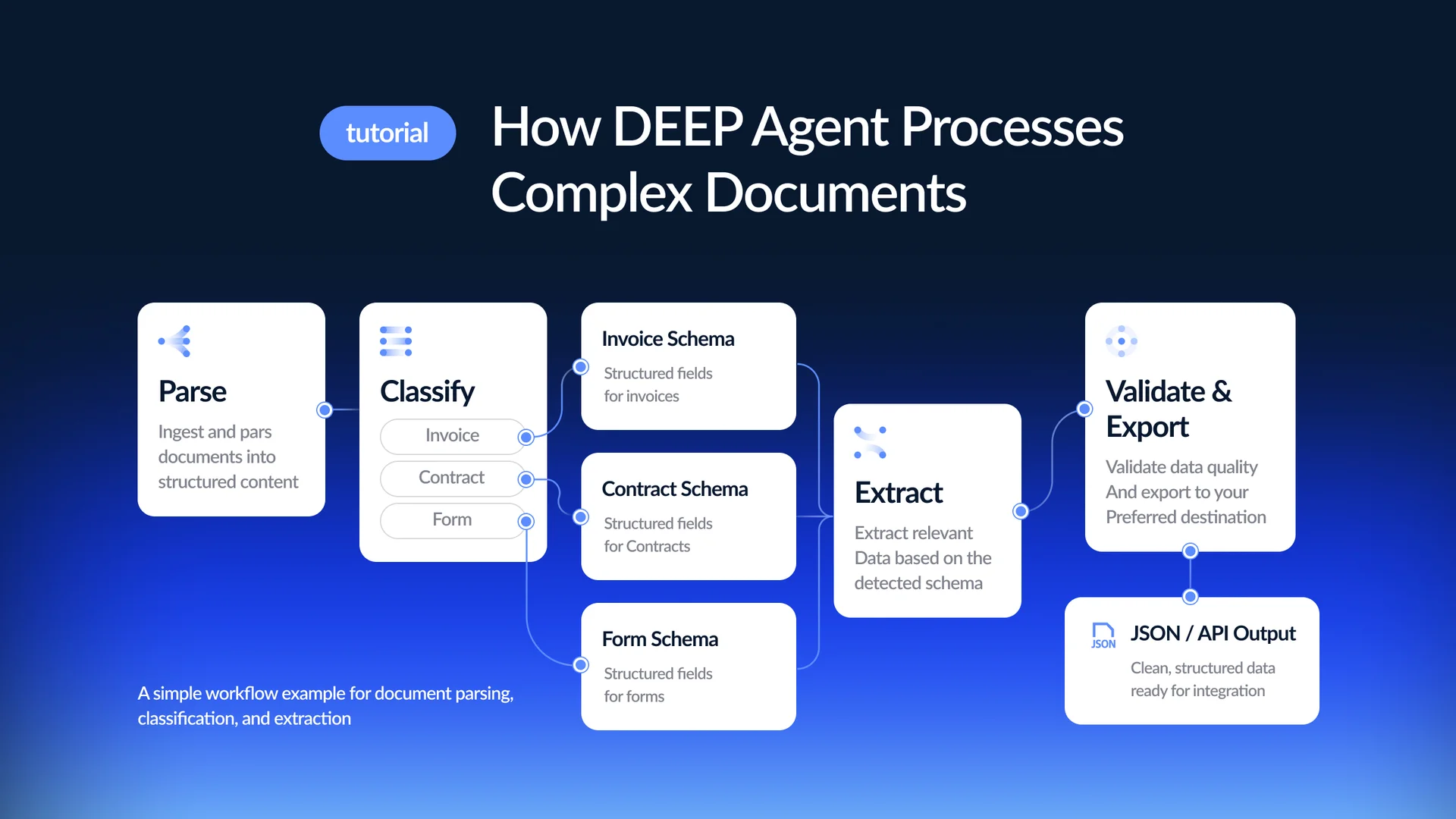

Where DEEP Agent fits
Every architecture in this guide depends on the same upstream condition: documents must become reliable evidence before they can become reliable answers. That is the layer DEEP Agent, Korea Deep Learning's document AI platform, is built to own — the document intelligence layer that prepares complex documents for retrieval, generation, and agent workflows.
Instead of treating OCR as the final output, DEEP Agent reads documents with a vision-language model designed to understand layout, hierarchy, tables, key-value relationships, handwriting, and visual structure — the same VLM-without-lossy-OCR direction the OHR-Bench authors identified as promising. It converts complex PDFs, scanned forms, reports, contracts, and mixed-format packets into structured JSON and Markdown that move into a RAG pipeline without losing the relationships a retriever depends on. Its outputs are source-grounded — extracted values trace back to the original document, which matters because enterprise users need to know not just the answer but where it came from. And it supports fully on-premise deployment with no external network calls during inference, which is critical for financial, legal, healthcare, government, and regulated operational documents.
That reading ability is independently measured. On the official OCRBench v2 leaderboard, KDL Frontier ranks first on the 2026.03 English evaluation at 68.1 — ahead of the Gemini and GPT systems scored in the same round — across capabilities that include recognition, extraction, and parsing alongside reasoning and understanding. For a RAG evidence layer, the relevant point is not the headline rank but that parsing and extraction are measured at all — though a benchmark result and your own documents are different tests, which is why the check below matters.
Benchmark performance is useful, but it should not be the only test. The most reliable way to evaluate any parsing layer — DEEP Agent included — is to run it on your own difficult documents and check whether the structure survives. If the output preserves tables, labels, reading order, source references, and structured fields, your retrieval system has better evidence to work with. If it does not, every architecture above it inherits the same weakness.
Conclusion: enterprise RAG starts before retrieval
RAG quality is not decided by the model alone. It is shaped by the evidence supply chain before generation begins: how documents are parsed, how content is indexed, how retrieval balances semantic and exact matches, and whether the final answer can be traced to source. For most enterprise teams the path is clear — use hybrid retrieval as the production baseline, add graph or agentic layers only when the use case requires them, treat document parsing as a reliability layer rather than a preprocessing step, and test the entire pipeline on real documents before trusting it with real decisions. In document-heavy RAG, the systems that win are the ones that preserve evidence from page to answer.
Try DEEP Agent with your own PDF
Bring a complex document your current pipeline struggles with — a table-heavy PDF, scanned form, multi-column report, contract packet, or handwritten document — to a 15-minute live session, and see how DEEP Agent converts it into structured, source-grounded, RAG-ready JSON and Markdown.
Frequently asked questions
What is RAG in one sentence? Retrieval-augmented generation fetches relevant information from an organization's own data at query time and gives it to a language model as context, so the answer is grounded in source material rather than only the model's training memory.
Is hybrid RAG better than naive RAG? For most production document workflows, yes. Hybrid combines semantic search, keyword search, and reranking, so the system handles both meaning-based questions and exact identifiers such as invoice numbers, clause IDs, and product references.
When do enterprises need Graph RAG? When the hardest questions require relationship traversal across entities, documents, or obligations — common in contracts, compliance, supplier networks, and financial relationships that demand multi-hop reasoning.
When do enterprises need Agentic RAG? When the system must plan multiple steps, call different tools, reformulate queries, verify evidence, and act across systems. It is powerful but adds cost and maintenance, so adopt it only when the workflow genuinely requires that autonomy.
How does document parsing affect RAG performance? Parsing determines what enters the index. If tables, labels, reading order, or page references are lost during ingestion, the retriever searches incomplete or distorted evidence even when the language model is strong. The OHR-Bench study (ICCV 2025) documents this cascading effect directly.
Should a larger context window replace RAG? Usually not. Larger windows do not automatically solve permission control, retrieval precision, auditability, cost, or source grounding. RAG remains the more controlled way to ground answers in enterprise data.
What makes a document RAG-ready? It preserves reading order, table structure, key-value relationships, source locations, and structured output. Plain extracted text is not enough when the original document carries meaning through layout and visual hierarchy.
